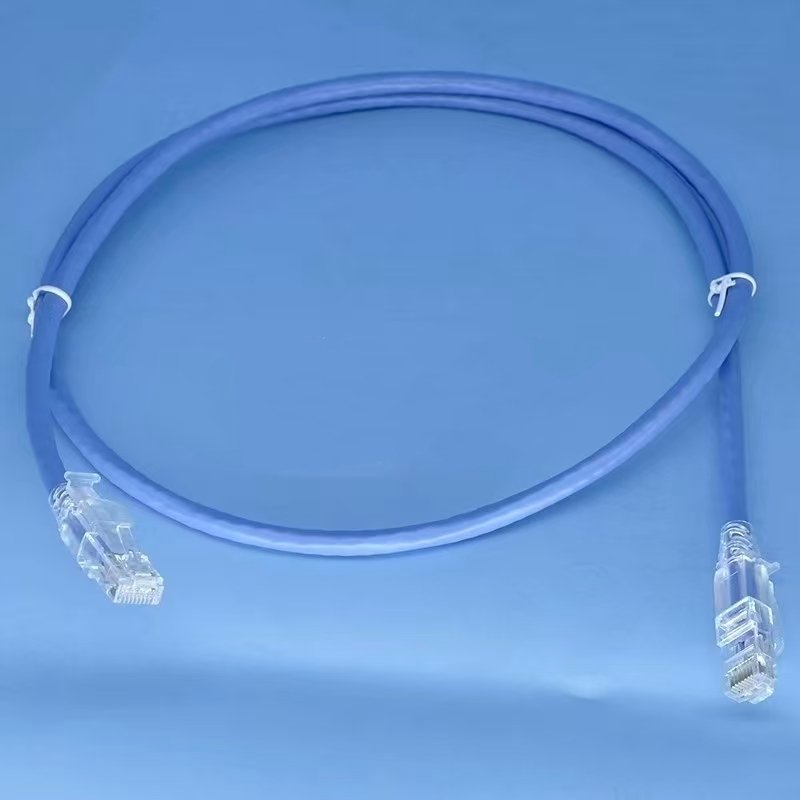

Lock-Bar Secure RJ45 Connector

Overview

After extensive engineering and refinement, the Lock-Bar Secure RJ45 Connector has been introduced to the market, delivering enhanced physical security, stable signal transmission, and a robust structural design for demanding network environments.

Applications

Designed for:

• Data centers and enterprise server rooms

• HD video surveillance

• IoT and AI systems

• 5G network equipment

• Smart infrastructure and industrial networks

Key Advantages

Independent R&D
Developed in-house with full intellectual property rights.

High-Performance Structure
Three-piece RJ45 design fully compliant with FLUKE Cat6 / Cat6A testing requirements.

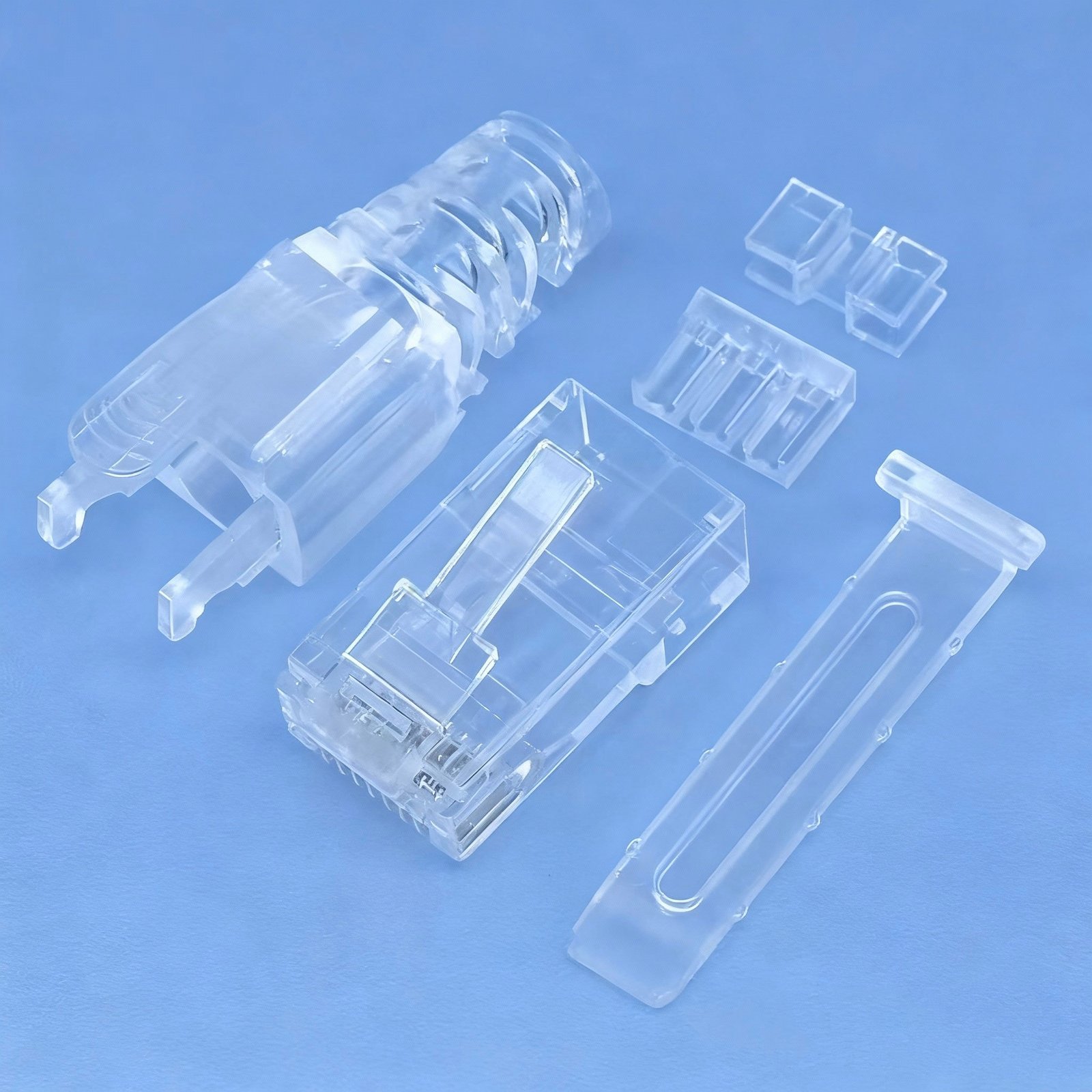

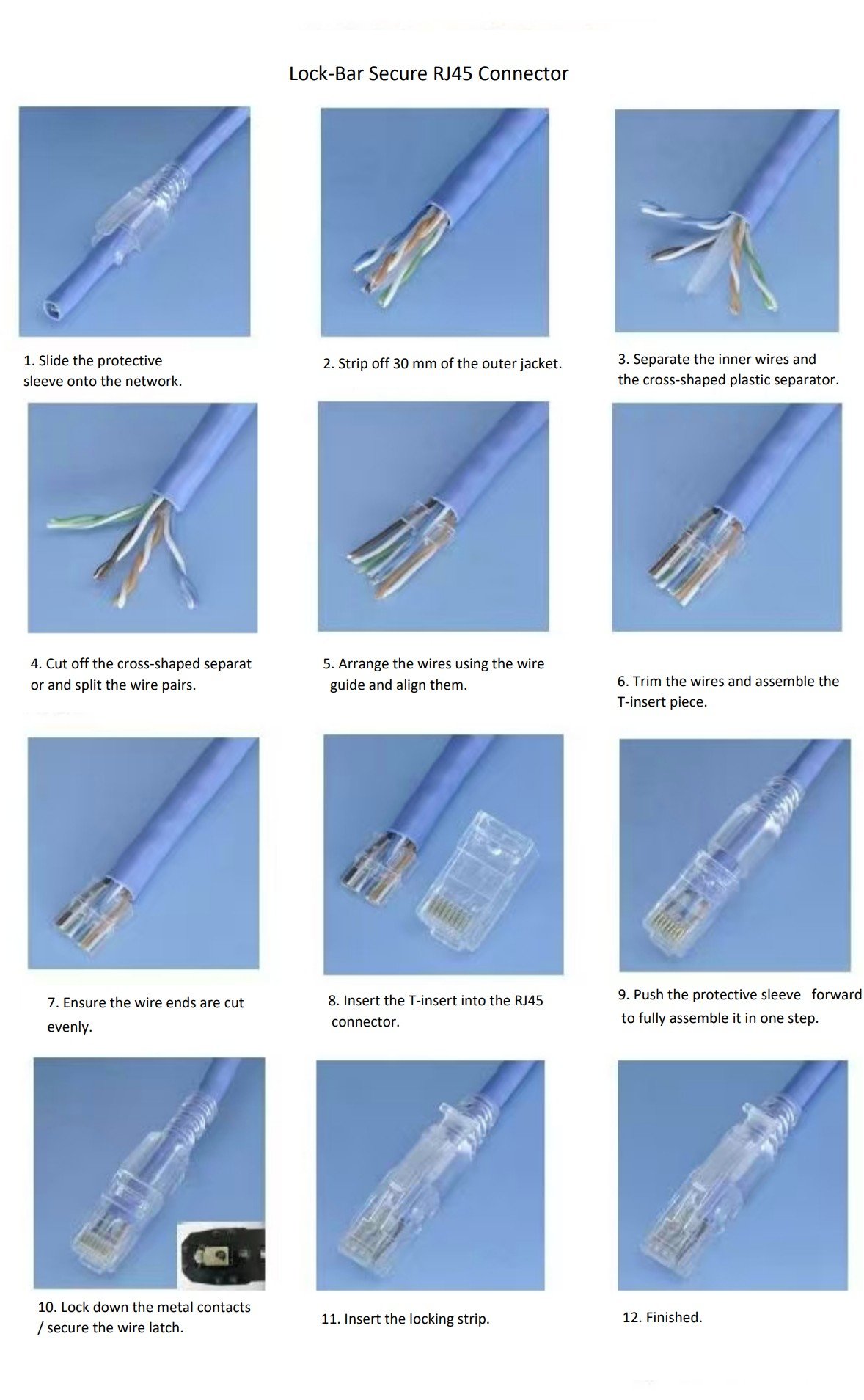

Innovative Lock-Bar Mechanism

• The lock bar slides into the upper guide groove of the housing.

• Side positioning bumps secure the bar in place.

• Pushing the bar forward locks the connector for stable transmission.

• Pulling it backward lowers the contact tabs, enabling removal and immediate network disconnection.

• When retracted, the bar also anchors at the cable tail, improving strain relief.

Flexible Housing
Compatible with multiple cable diameters for simplified interchangeability.

Testing Standards

Meets the full requirements of:

• TIA Patch Cord Cat6 / Cat6A

• FLUKE single-ended, Channel, and Permanent Link testing

Compatibility

• Outer Jacket (OD): 5.0–6.5 mm

• Conductor Diameter (ID): 0.85–1.10 mm

Construction

• Housing and lock bar designed as separate components for straightforward assembly

• Smooth locking and unlocking through simple forward/backward bar movement

• Reliable mechanical architecture with strong competitiveness in the secure-connector market

Premium Materials

• Contacts: C2680EH, with 100 μ” nickel underplating and 50 μ” gold plating for high conductivity

• Body & Lock Bar: Flame-retardant PC material rated UL 94V-0
