Lock-Core Secure RJ45 Connector

Overview

In today’s network-driven world, accidental or malicious cable removal can lead to serious security and connection issues. The Lock-Core Secure RJ45 Connector is designed to eliminate these concerns, ensuring stable data transmission and secure physical locking for critical network environments.

Applications

Ideal for high-performance and high-security environments, including:

• Data centers

• Professional server rooms

• HD surveillance systems

• IoT and AI applications

• Hospitals, schools, and public facilities

• 5G equipment and intelligent control systems

Key Advantages

Proprietary Innovation
Independently developed with full intellectual property rights.

Three-Piece Structure
Meets FLUKE Cat6 / Cat6A patch cord testing standards with excellent transmission performance.

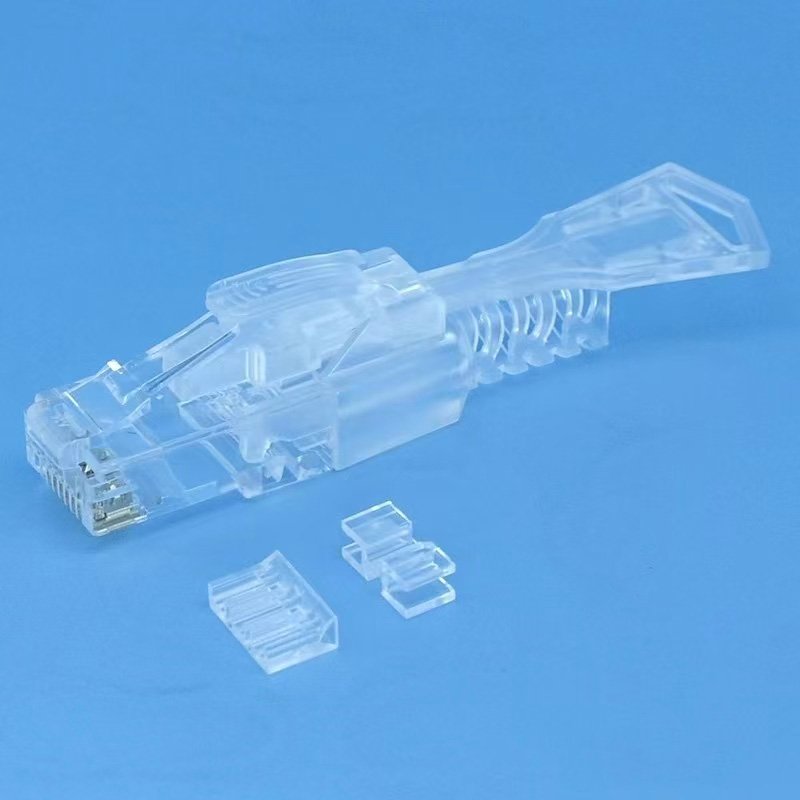

Secure Lock-Core Mechanism

• The housing, lock core, and key integrate into a unified assembly.

• Insertion of the key pushes the lock core into position, securing the connector to the module for stable data transmission.

• Pulling the key back releases the lock core, lowering the contact tabs and allowing the connector to be removed, instantly interrupting the network connection.

Highly Compatible Housing
Supports a wide range of cable diameters with interchangeable strain-relief openings.

Testing Standards

Fully compliant with:

• TIA Patch Cord Cat6 / Cat6A

• Single-ended, Channel, and Permanent Link performance tests using FLUKE instruments

Compatibility

• Outer Jacket (OD): 5.0–6.5 mm

• Conductor Diameter (ID): 0.85–1.10 mm

Construction

• Modular three-part assembly (housing, lock core, key) for simple installation and reliable operation

• Compact design with secure mechanical locking / unlocking through key movement

• Excellent competitive advantage for security-demanding applications

Premium Materials

• Contacts: C2680EH with 100 μ” nickel underplating and 50 μ” gold plating for low contact resistance and superior transmission

• Connector Body & Lock Components: PC material rated UL 94V-0 for flame resistance and durability
